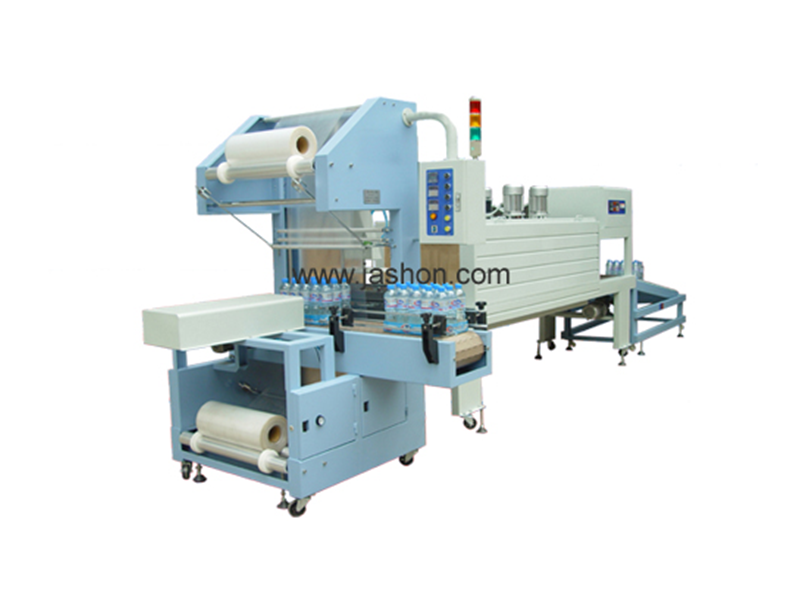

The working process of this machine is controlled by electric and pneumatic, and it has the function alarm of no film and sealing and cutting malfunction. It is an advanced packing equipment in the film sealing, cutting, heat shrinking and packing machine
The machine is mainly for the food and beverage products, ceramics etc. The equipment used for PE thin films, compared with the traditional carton packaging, greatly reduce the packaging cost.|
Voltage |
220V 50-60HZ |
|
Power |
1.5KW |
|
Electric plate power |
1.3KW(2 pieces) |
|
Maximum size of package(L*W*H) |
530*330*380mm |
|
Packing speed |
12 piece (1min) |
|
Maximum Seal Size |
650mm |
|
Height of conveyor |
800+50min(adjustable) |
|
Working pressure |
5-7kgf/cm2 |
|
Machine Size (L*W*H) |
1550*1400*1920 |
|
Weight |
400kg |
