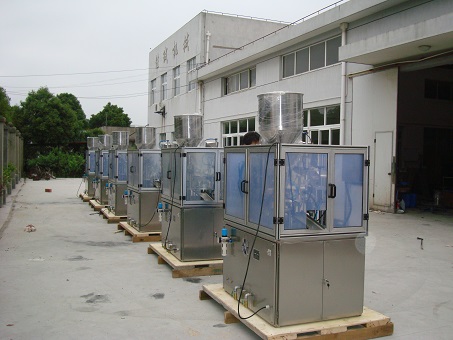

The machine is
operated by switch button and touch screen, and controlled by PLC. It can
automatically load tubes, check color codes, filling, sealing, stamp batch
numbers or date, cut ends of tube and exit tubes. The plastic or
aluminum-plastic tube with diameter 16-60mm, length 60-258mm is available.
This machine has
the CE certificate, and exported to many foreign countries like Syria, Israel,
Jordan, Turkey, Egypt, Mauritius, Bengal, South Africa, etc.
2. Technology Parameter
|
Model |
DGF-40 (CE certificate ) |
|
Filling Volume |
15-70ml, 60-120ml, 80-250ml (can choose at will) |
|
Filling Precision |
±1% |
|
Product Ability |
30-40 PCS/MINS（According To The Filling Material） |
|
Rated Air Supply |
>0.5Mpa >0 . 14M 3 /MIN |
|
Power Supply |
220V, 50HZ/60HZ |
|
Power |
4KW |
|
Counter |
0 — 999999PCS |
|
Weight |
550Kg |
|
Size （mm） |
2100×925×1704 ( L*W*H ) |
3. Main Electrical Apparatus Configuration
|
Product |
Art name |
Brand |
Model |
Origin |
|
DGF-40 |
Touch screen |
WEINVIEW |
MT506M |
Tai Wan |
|
Transducer |
MITSUBISHI |
FR-E540-0.75K-CHT |
Japan |
|
|
PLC |
MITSUBISHI |
FXIS-30MT-001 |
Japan |
|
|
Sensor |
SICK |
MHT15-N2317 |
German |
|
|
Time Relay |
OMRON |
G3NA-220B DC5-24(V) |
Japan |
|
|
Button |
SCHNEIDER |
ZB2-BWMGIC |
France |
|
|
Air Switch |
MERLIN GERIN |
CN65N |
France |
|
|
Motor |
TIANMAI |
DN4010YO.37 |
China |
|
|
Pneumatic |
AIRTAC |
SU32*50-S |
Tai Wan |
|
|
Pneumatic |
AIRTAC |
MAL20*5-U |
Tai Wan |
|
|
Triplet |
AIRTAC |
CFR-400-A |
Tai Wan |
|
|
Electromagnetic Valve |
AIRTAC |
4U210-08 |
Tai Wan |
|
|
Electromagnetic Valve |
AIRTAC |
4U410-15 |
Tai Wan |
|
|
Heater |
LELSTER |
LE-3000 |
Switzerland |
