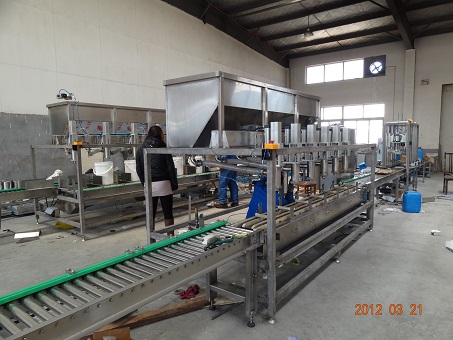

Manual load pail—automatic transfer—6 head automatic filling—automatic sorting cap—automatic capping—weight checker—automatic labeler — conveying to stacking machine—semi-automatis stacking—pallet transfer —forklift transfer
1, Keli sensor, long life service and stability, ;
2 , computer automatic weighing and high precision;
3, double speed filling (at the beginning of fast filling,automatic slow filling when close to the target ) to ensure the filling accuracy;
4, vacuum suck system to ensure no leakage;
5, press button at anytime, easy to clean pipes and emergency stop;
6, special treatment can be filled with high temperature liquid, corrosion liquid, high viscosity liquid.
7. The main frame is 304 stainless steel, and the material contact part is 304 stainless steel material
Advantage
Use the touch screen and MITSUBISHI PLC can clear show different complex and overlapping parts of images and data; 64 RSIC CPU high-speed operation, make the operation more convenient; high speed communication built-in communication interface up to 115.32Kbps. The utility model can monitor the field instrument in real time, display the animation of actions, output the alarm interface, set parameters and accumulate production. With automatic tare, cumulative bucket number and weight, random display filling amount, automatic zero tracking, automatic fall correction, over weight, abnormal alarm function operation, to achieve high-speed operation, communication, display the full range of equipment control easy and quick.
In addition to control the signal of weighing sensor and switch imput and output, the control system will also control the frequency converter of conveyor and motor, and the amount of filling. To achieve communication between inverter and PLC with FX2N485BD, allow conveyor motor could set parameter on the touch screen. The weighing sensor can be directly controlled by the PLC positioning pulse output.
voltage： 220V/50Hz
power： 4KW
Air pressure： ≥0.5Mpa
Air consumption: ≤0.15M3/Min
Filling weight: 20KG—30KG
Filling precision： ±0.2%
Filling speed: 500pail/H
Pail: 18～30L small mouth of standard pail
All contact parts are use SS316.
